Akron

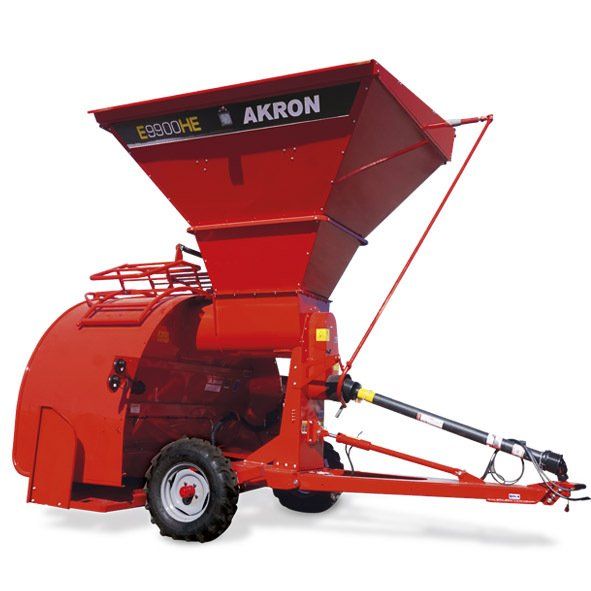

Dry Grain Baggeer E9900HE - 9ft
- Continuous flow silage capacity : 900 ton /hour

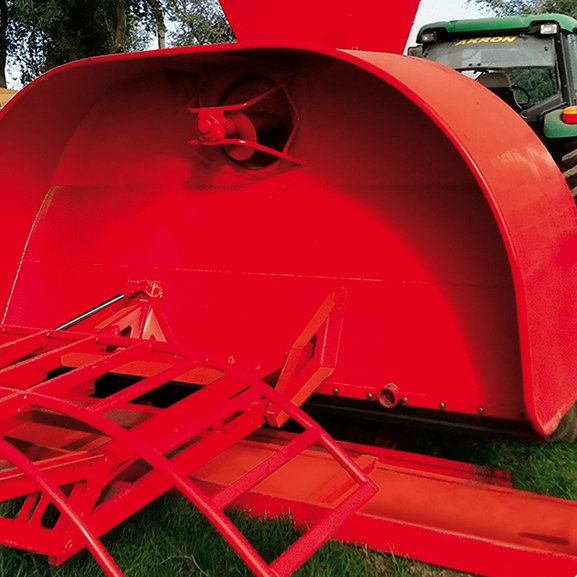

- Silage tunnel for bags of : 9 feet
- Required power : 65 HP
- Tube diameter /Auger : 500 mm
- Extra short reinforced horizontal auger 8 mm thick
- Reduce grain breakage
- Changeable shirt

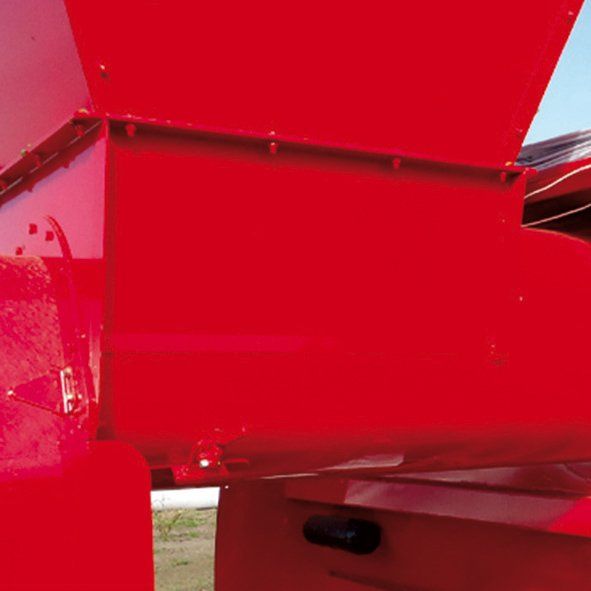

- Large capacity reception hopper
- High resistance structure, built with shaped tubes and stamped plates
- Chain, crown and pinion transmission with automatic tensioner
- Hydraulic lance adjustment
- Brake panel (optional left or right side)
- Support foot to release the tractor
- Transport and work lights (optional)
- Rubber band on the tray that prevents the return of grains
- Coil (optional)
- Tires 7.50 x 16 (optional 8.25 x 16)

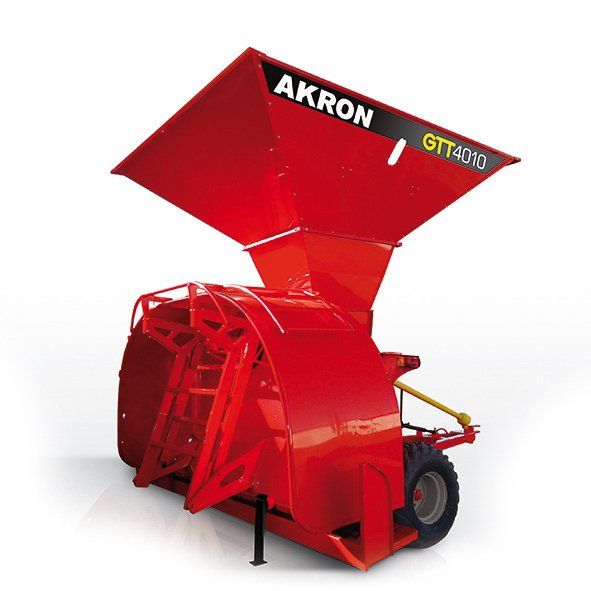

Dry Grain Baggeer GTT4010 - 10ft
- Continuous flow silage capacity: 800 tn /hour
- Silage tunnel for bags of: 9 and 10 feet
- High resistance structure
- It can be used with bags of 10 feet, up to 150 meters
- Large capacity receiving hopper (3,360 x 2,815 x 885 mm)
- Endless tube diameter: 500 mm (20”)
- Electrostatic polyurethane paint
- Precise hydraulic brake
- Hydraulic tray that offers the simplest and fastest way to load bags

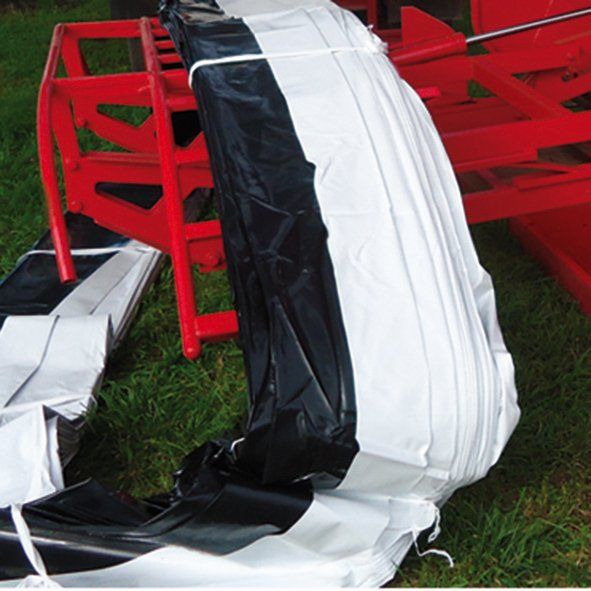

- Exclusive patented EASY LIFT bag lifting system! It is no longer necessary to handle the bag once placed on the hanger!

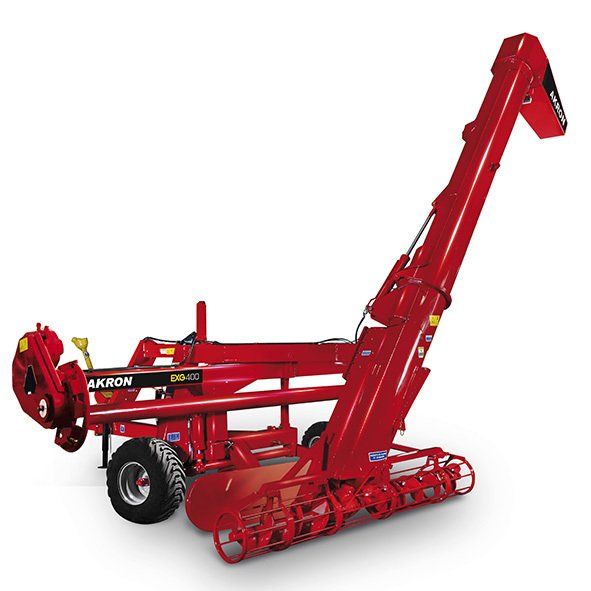

Dry Grain Extractor EXG400X - 10ft
- Work capacity: up to 360 tn/hour
- For bags of: 9 and 10 feet of 500 feet in length
- Required power: 90 HP
- Hydraulic power required: 180 bar 60 LPM
- Tube / auger diameter: 430 mm
- Horizontal auger diameter: 250 mm

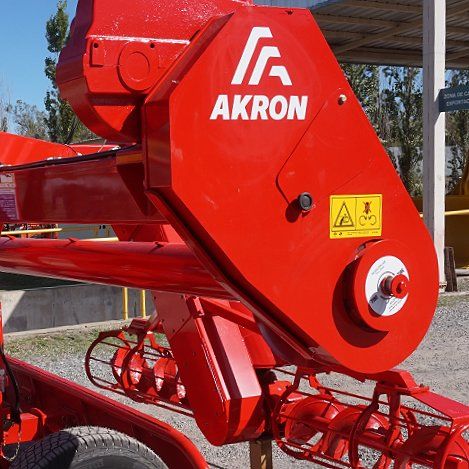

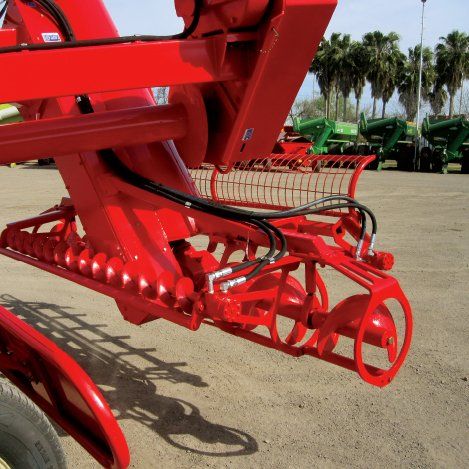

- Lower angular box and loading accelerator: they simplify the drive of the augers and ensure an optimal end of the bag
- Independent hydraulic commands
- Hydrostatic advance, automatic by rolling up the bag, with advance speed regulation and robust gearbox
- Autotrailer system: allows a quick change of position from transport to work
- Axles and Tires: Reinforced axle system with weight transfer to the drawbar
- High capacity tires 400 x 60 x 15.5”
- Electrostatic polyurethane paint
- Transmission bag winding system

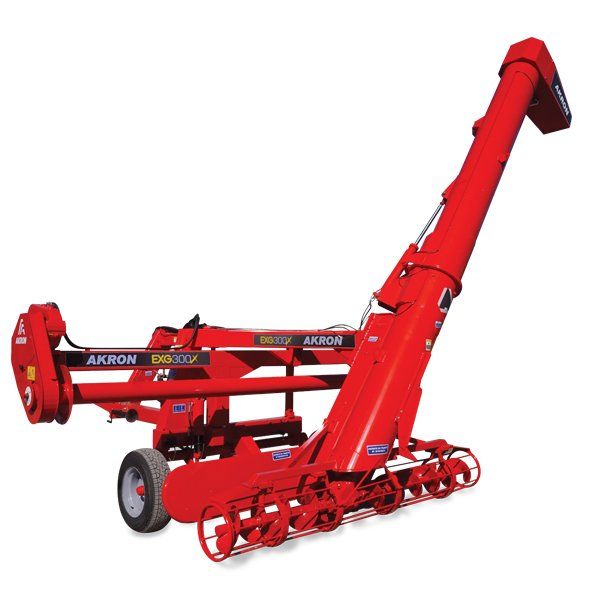

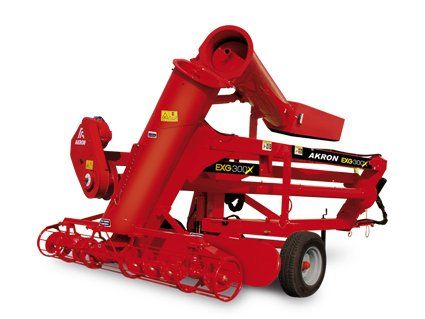

Dry Grain Extractor EXG300 - 9ft
- Work capacity: up to 360 tons/ hour
- Autotrailer system: allows a quick change of position from transport to work
- Lower angular box and loading accelerator: they simplify the drive of the augers and ensure an optimal end of the bag
- Independent hydraulic commands
- Hydrostatic advance, automatic by rolling up the bag, with speed regulation and robust gearbox
- Required power: 90 HP
- For bags of: 9 feet
- Tube/ auger diameter: 430 mm
- Horizontal auger diameter: 250 mm
- Tires: 235/70 16”
- Electrostatic polyurethane paint
- Height - adjustable blade: for bag cutting
- Hydraulic pivoting peak (optional)
- Rice kit (optional)
